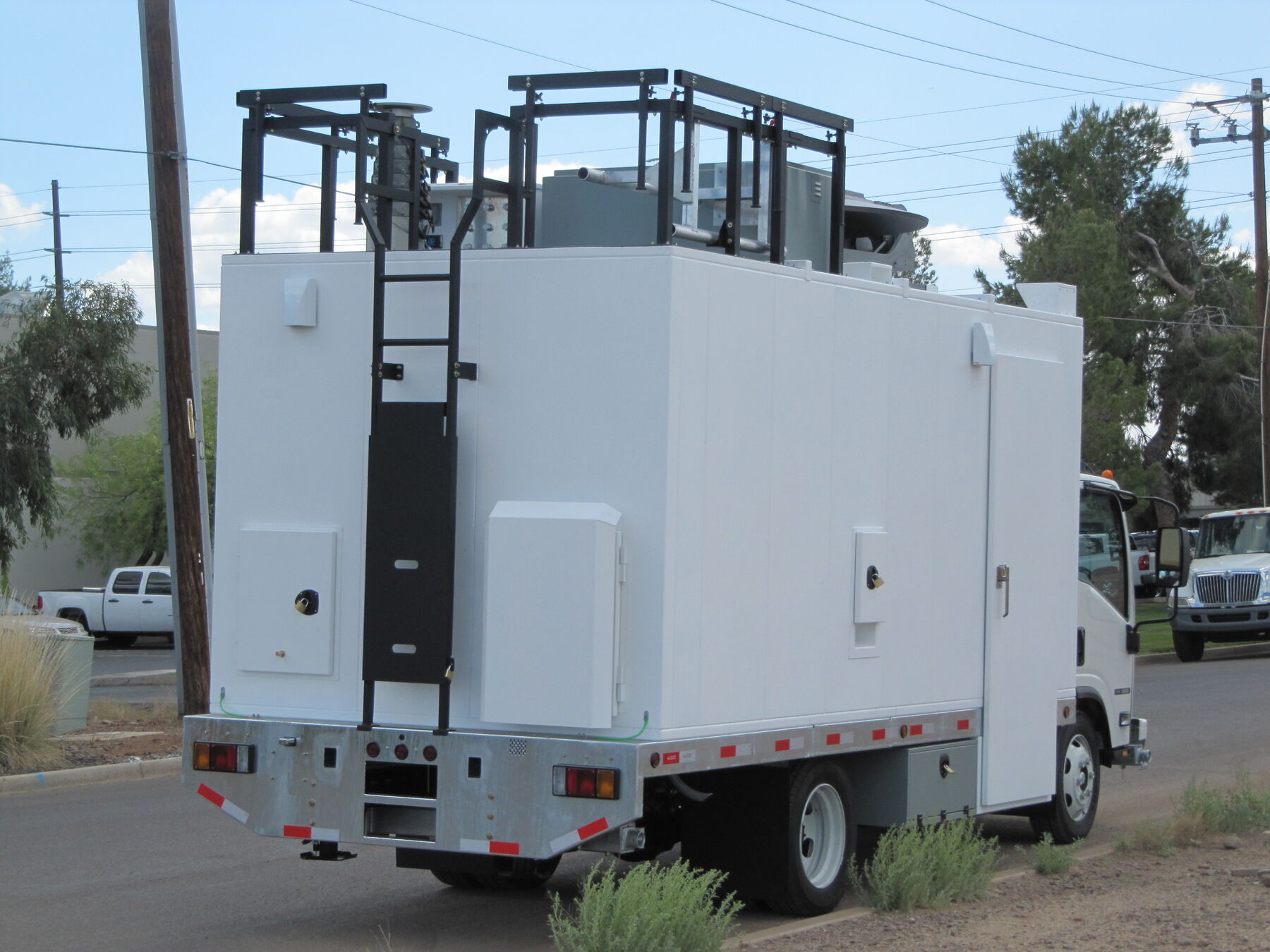

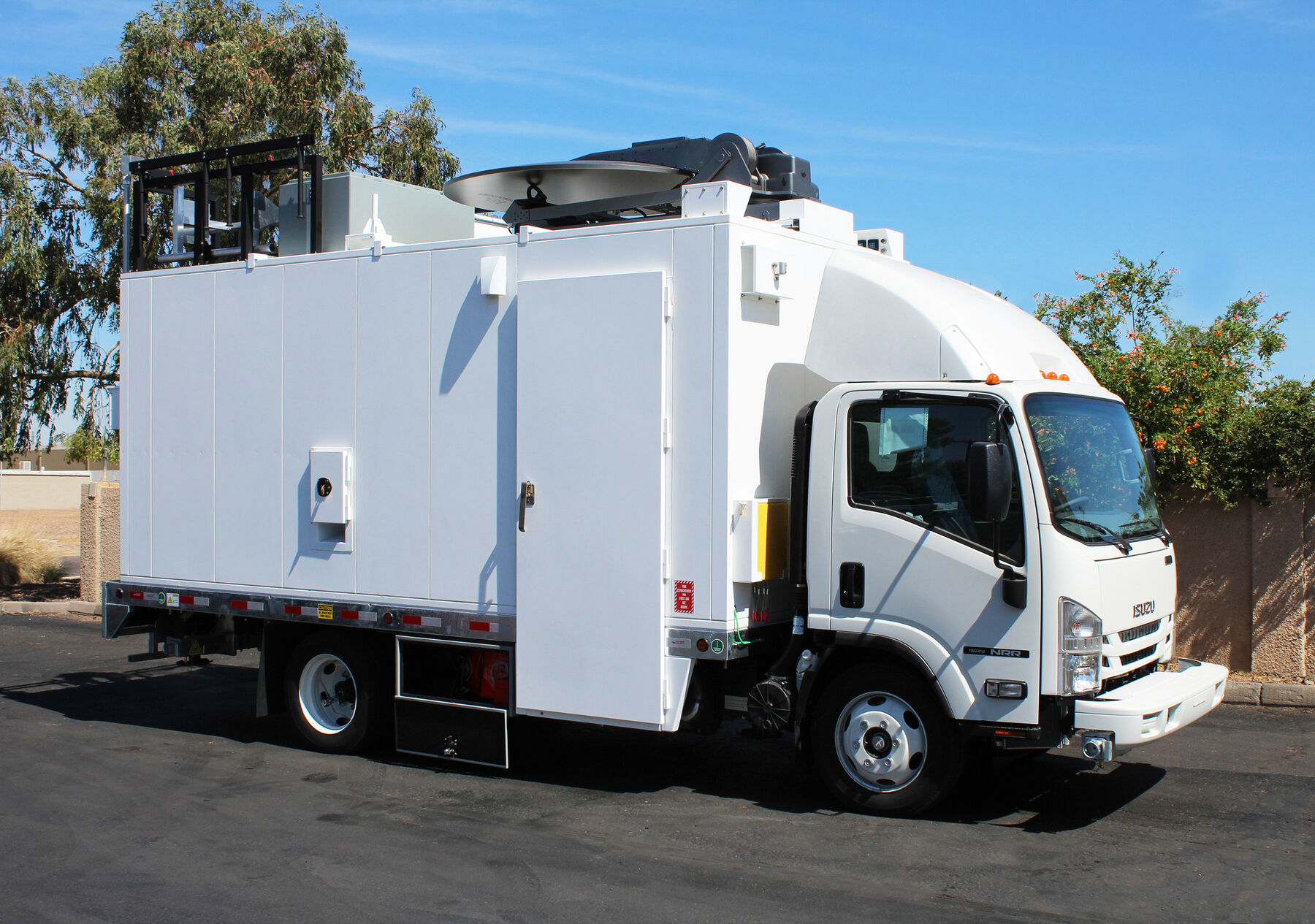

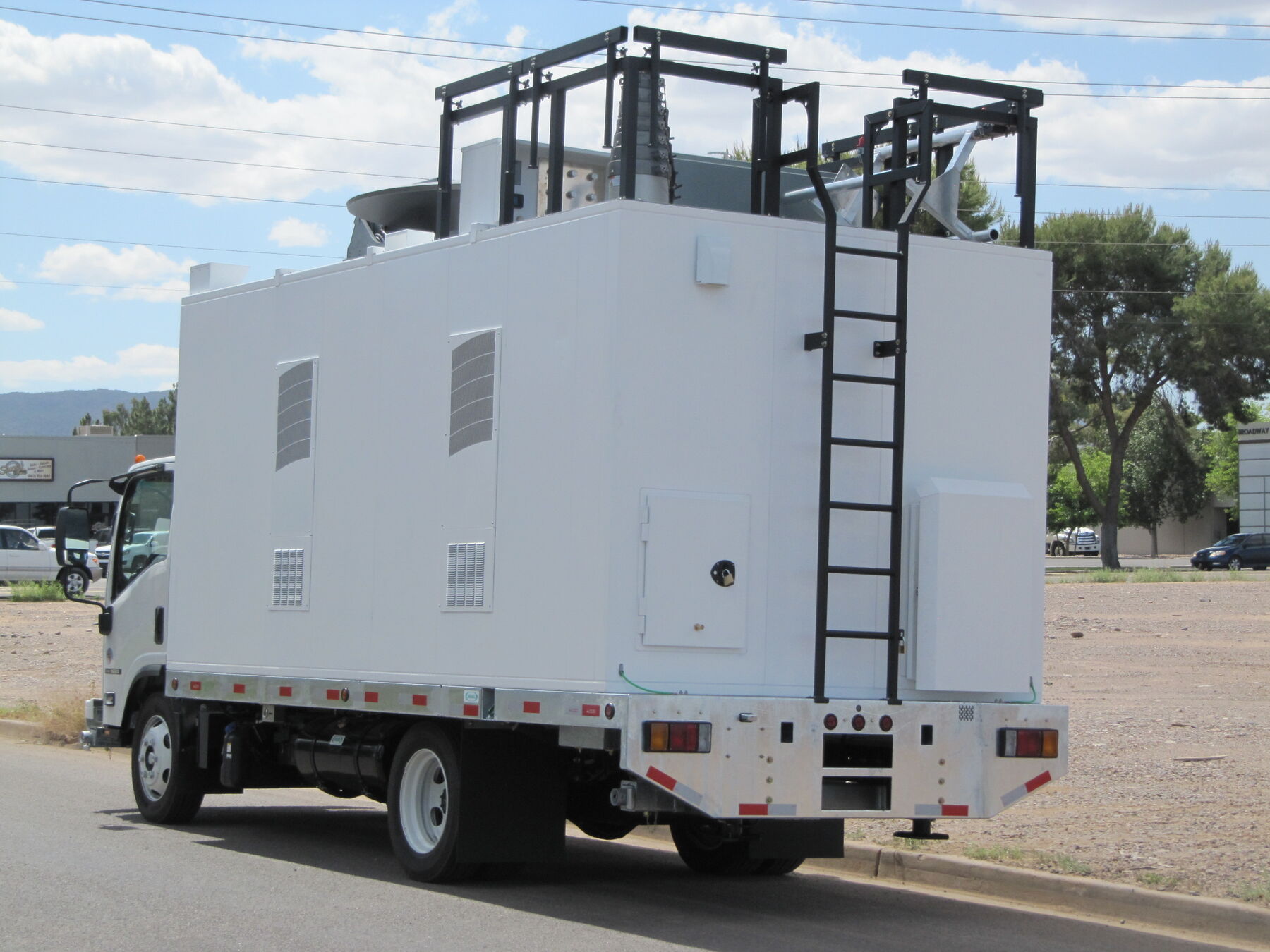

The cabover COLT was developed to meet the needs of those whose requirements are more than what a van solution can offer.  This cabover design offers increased weight carrying capacity in a small package.  This van offers up to 19,500-lbs GVW vs. the Sprinter van's 11,030-lbs GVW.  The manuverability of this truck is better than that of a comparable sized van due to the short wheelbase and cabover design.  This makes for a perfect inner-city solution.



GENERAL SPECIFICATIONS

Isuzu NRR Truck Chassis (19,500 lbs. GVWR)
Aisin A465 6-Speed Automatic Transmission with Double OD
Hydraulic Brakes with 4-Channel ABS
(4) Automatic Hydraulic Leveling Jacks
16’ Equipment Cabinet
Side Door with Integrated Entry Steps

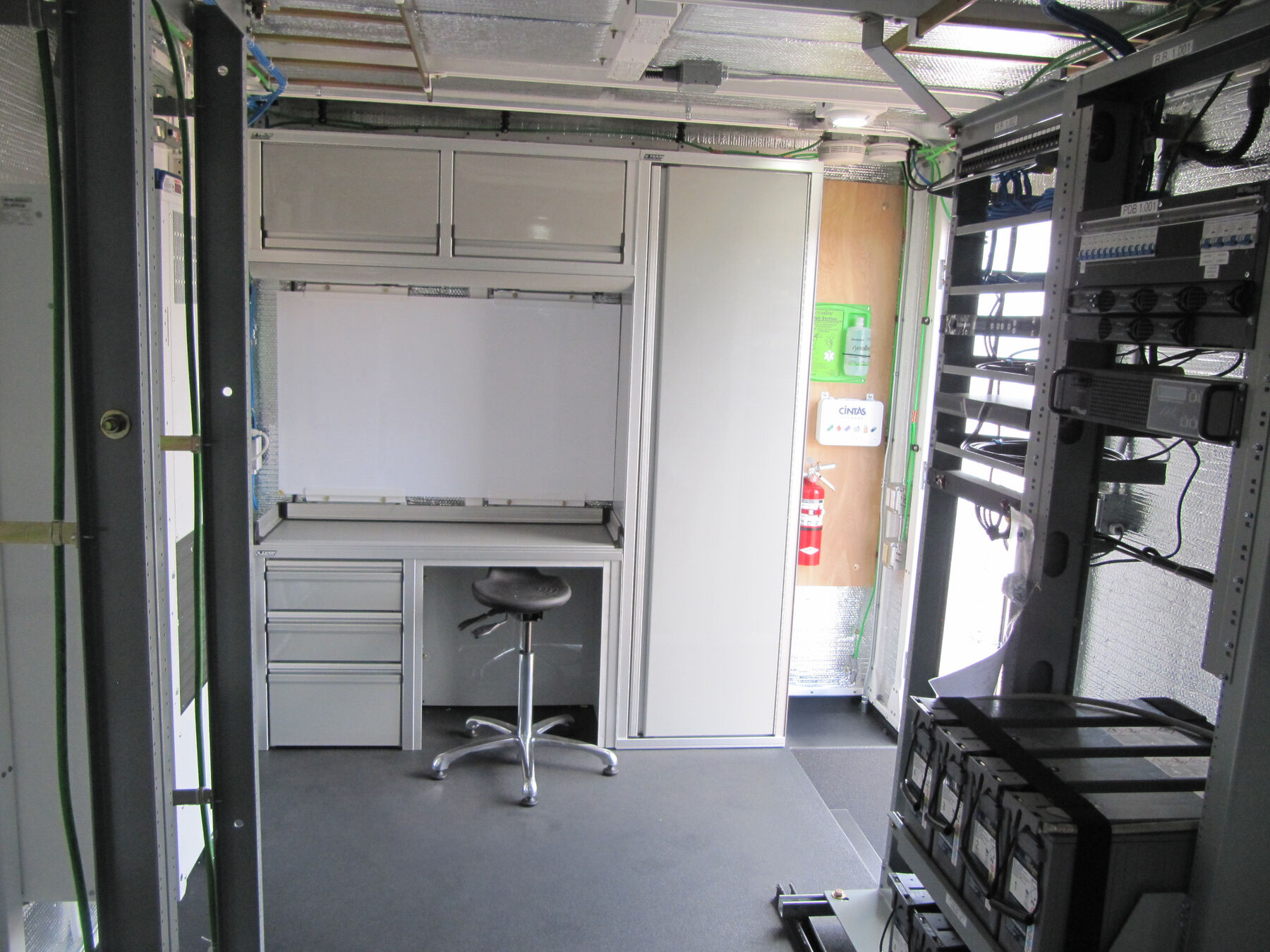

Seated Workstation with Whiteboard and Ample Storage Space
(1) 60' Super Heavy Duty Mast with 530-lb. Lifting Capacity
(2) 20,000 BTU A/C Units with Heat Strip
Automatic Transfer Switch with Cam-Lock Connection
200 AMP Distribution Panel 120/240 1Ø
19”/23” Equipment Racks for Customer Installed Equipment
Pullout Design, Multiple Position Outriggers with Galvanized Finish
20Kw Cummins Onan SD-20 Generator with Programmable Remote Start and Hour Meter

  • Voltage — 1Ø 120/240
  • 1Ø 120 Volt 167 Amps
  • 1Ø 240 Volt 83 Amps
  • Dedicated 33 Gallon Side-Mounted Diesel Fuel Tank

Contact your local sales representative or call us directly at (602) 275-0662.
