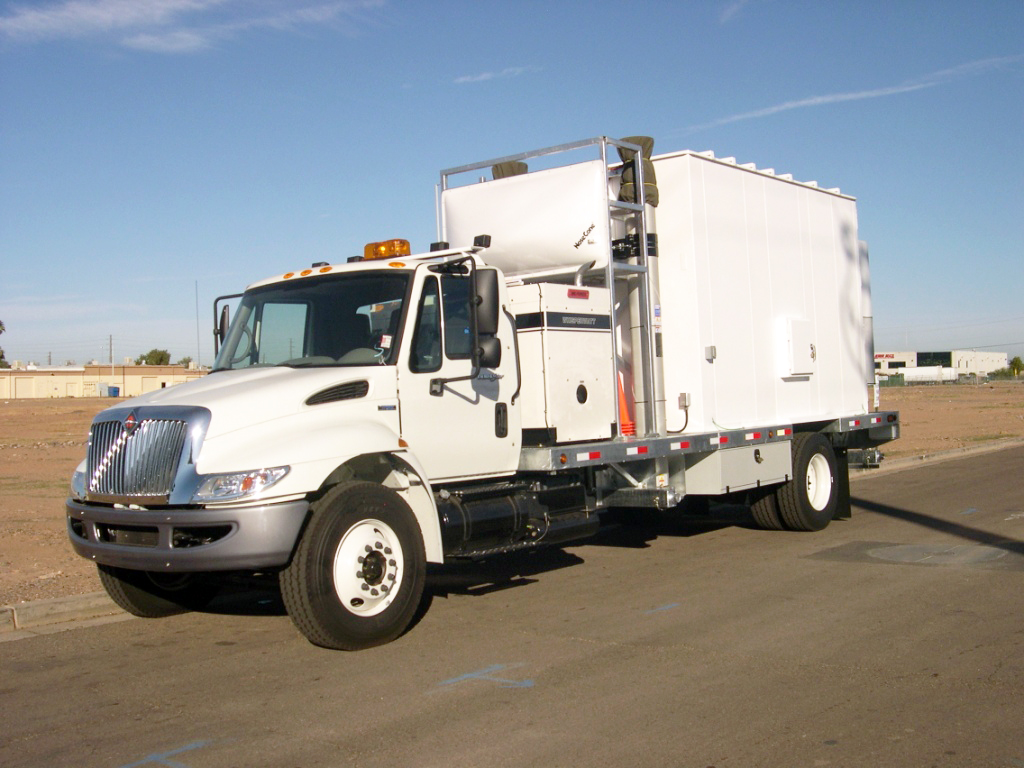

The Sun West Engineering Non-CDL COLT - Cell On Light Truck is designed for supporting special event coverage, temporary construction, network restoration and first responder requirements all without the need for a Commercial Drivers License (CDL).

Our standard Non-CDL COLT features:

  • New International MV 26,000-lb. GVWR Non-CDL chassis
  • 250HP 6-Cylinder Cummins® Diesel Engine
  • Allison 2500RDS Automatic Transmission
  • Custom Manufactured Bed Frame with Galvanized Finish to Accommodate Desired Components
  •  7-Bay U.L.® Listed NEMA 3R Aluminum Equipment Cabinet
  • (2) 60’ SHD “Super Heavy Duty” Masts with 530-lb. Lifting Capacity
  • Crow’s Nest Mast Support and Working Platform per OSHA Standards
  • 20 Kw Generator
  • Guy Kit - Augers/Cables/ Wheel Chocks/Jack Pads
  • (4) Multi Position Outriggers with Jacks for Stabilization
  • (2) Storage Boxes 60"W x 16"H x 20"D Linex® Coated Interior with Locking Door
  • (2) 42,000 BTU/hr HVAC units
  • 200 Amp 120/240 1Ø, 42 Position Distribution Panel
  • Automatic Transfer Switch with CAM Locks for Alternate Source Connection

These COLTS are configurable with many options to accommodate project requirements. We have designed literally hundreds and hundreds of different configurations. Therefore it’s impossible to show all the different solutions that might be available.  The configuration sample drawing below is just that, a sample configuration.

Please contact us so we can discuss your project requirements.  We will work with you to design the perfect  solution to meet your needs.  Contact your local sales representative or call us directly at (602) 275-0662.
