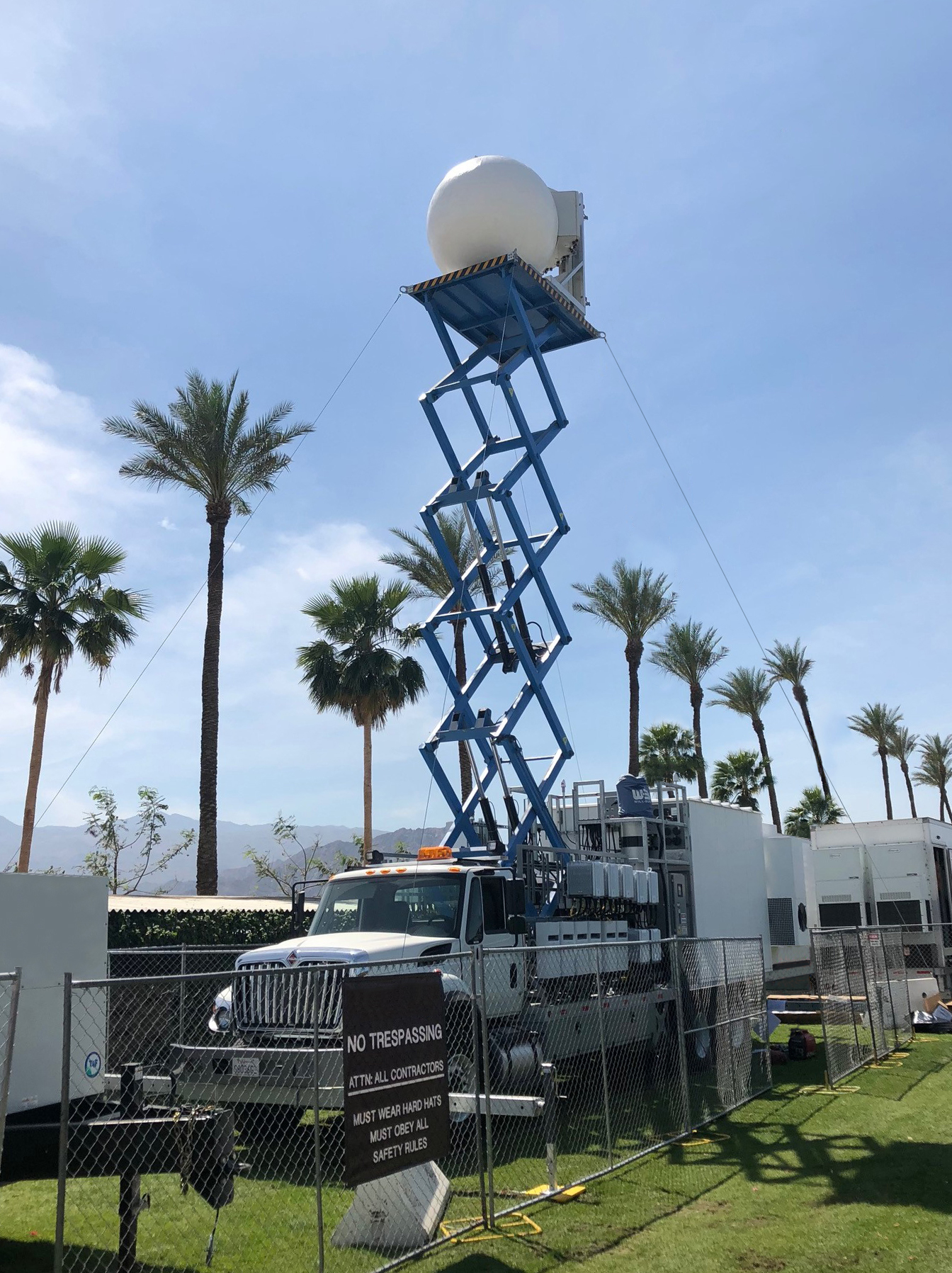

The EXCLUSIVE and patented Sun West Scissor COW is here and ready to save you deployment dollars. The scissor COLT was born from the desire to speed the deployment of Matsing and other large multi-beam antennas, while eliminating the costs associated with crane rentals and man-lifts for these deployments. For example, it can take a crew hours to have a crane mount the 500-lb Matsing 12.6 antenna and install upwards of 36 lines of coax on a mast or tower.

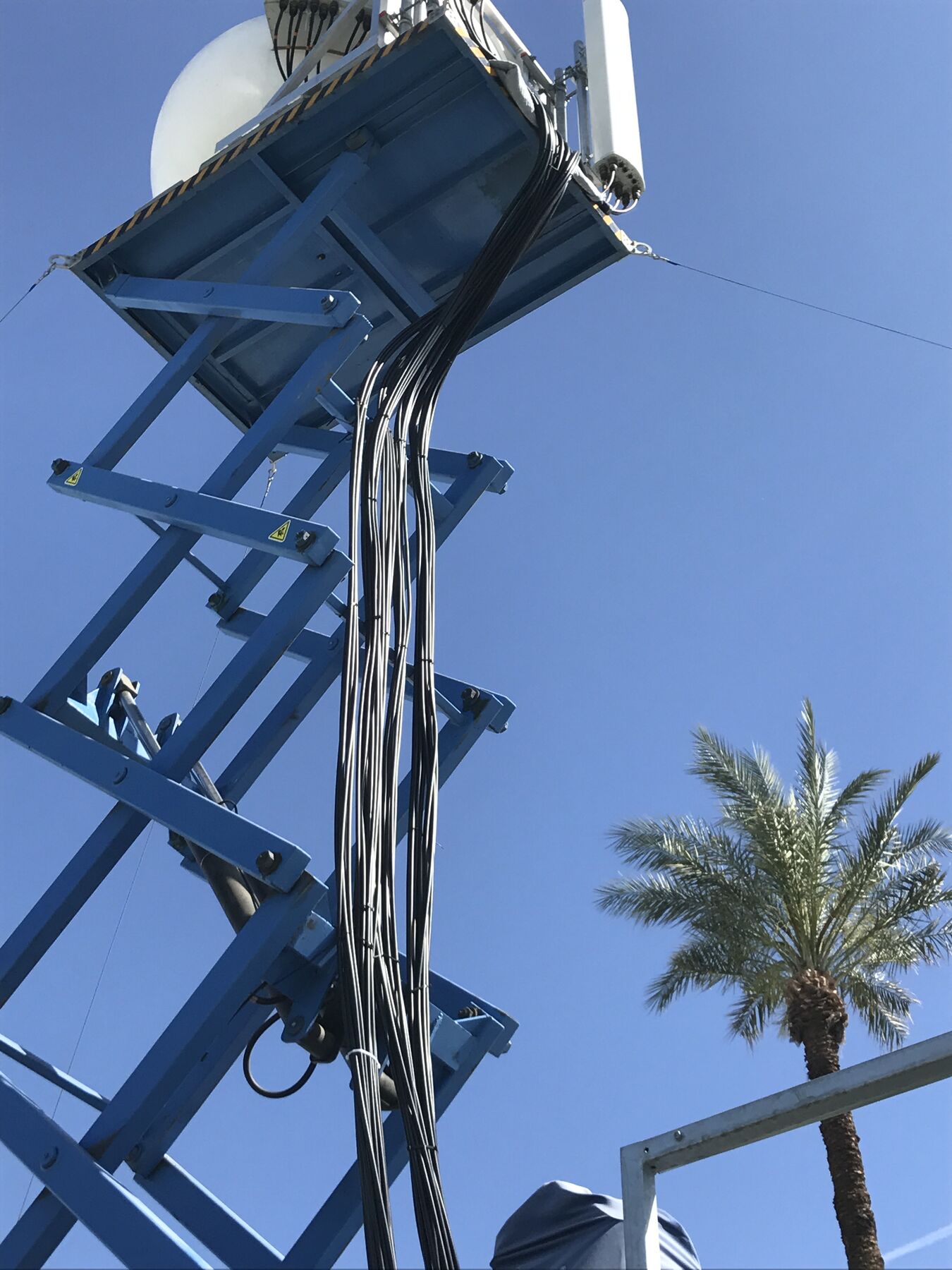

With the custom designed and purpose built scissor lift, the Matsing 12.6 can be permanently mounted to the scissor platform and travels with the vehicle, eliminating the crane and man-lift.  Therefore, leaving only the feeder cable connections to the antenna from a bulkhead port plate on the vehicle. The antenna rotates 360° further speeding deployment. The hydraulic system uses an environmentally friendly vegetable oil that is even considered safe in California.

Protected Under US Patent Number: 10,276,915 B2 Dated April 30, 2019

Scissor COLT Sample Specifications:

  • New 48,000-lb GVWR Tandem Axle Truck Chassis
  • UL® Listed Walk-In Equipment Cabinet
  • Fully Galvanized Steel Bed Frame Assembly to Accommodate Mounting of All Equipment Requirements
  • Crow’s Nest Mast Support and Working Platform per OSHA Standards
  • 34.5' Hydraulic Scissor Lift with Guy Kit (37' Rad Center)
  • Matsing 12.6 Antenna Mount with Rotating Base
  • (2) 59' Ultra Heavy Duty Mast with 1,200-lb Lifting Capacity

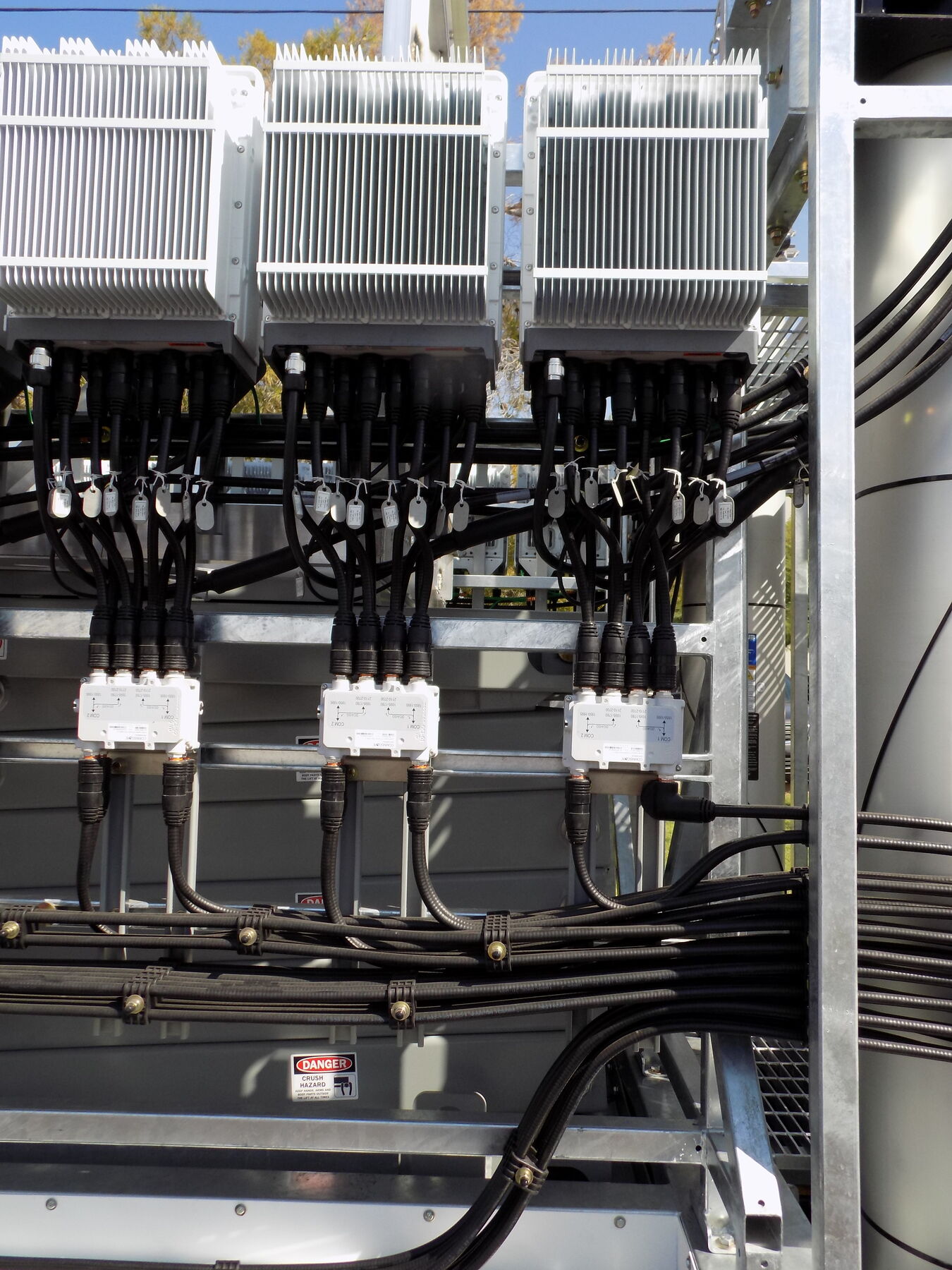

  • Custom Designed Radio Head Mounting Frames for Radios and Combiners
  • Low Height, Easy Boarding Deck with Integrated Step
  • (4) Automatic Hydraulic Leveling Jacks
  • (4) Multi-Position Outriggers with Jacks for Stabilization
  • Storage Box 24"W x 72"L x 16"H Linex® Coated, Lockable
  • Guy Kit - Augers/Cables/ Wheel Chocks/Jack Pads
  • LED Lighting

These COLTS are configurable with many options to accommodate project requirements. We have designed literally hundreds and hundreds of different configurations. Therefore, it’s impossible to show all the different solutions that might be available.  The configuration sample drawings below are just that, only a sample configuration.

Please contact us so we can discuss your project requirements.  We will work with you to design the perfect solution to meet your needs.  Contact your local sales representative or call us directly at (602) 275-0662.
