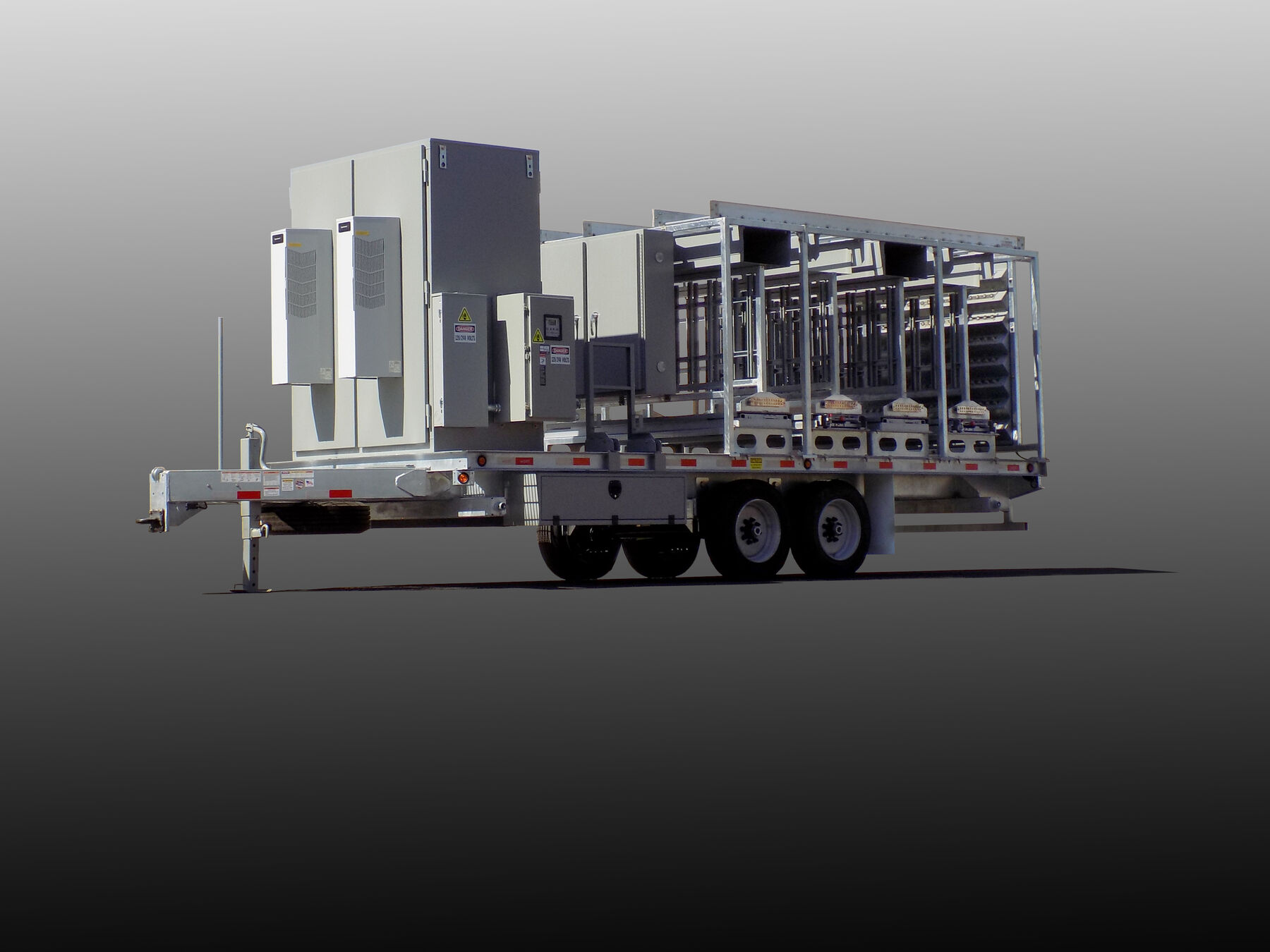

COWS (Cell On Wheels)

The Sun West COW - Cell On Wheels is designed to provide an industry standard platform to accommodate customer equipment and/ or equipment cabinets. Standard features include, DOT approved trailer “Manufactured by Sun West Engineering, Inc”, LED Lighting, vertically adjustable hitch, low height easy boarding deck with integrated step, Universal steel grated decking to easily accommodate mounting of all equipment requirements, fully galvanized finish, crow’s nest mast support and working platform per OSHA standards, outriggers, storage cabinets/ boxes, and a variety of pneumatic and hydraulic masts.

Our COWS are configurable with many options to accommodate project requirements. Please refer to the attached drawings and full specifications. Please consult factory for special configuration options.


Mini-COW / CROW

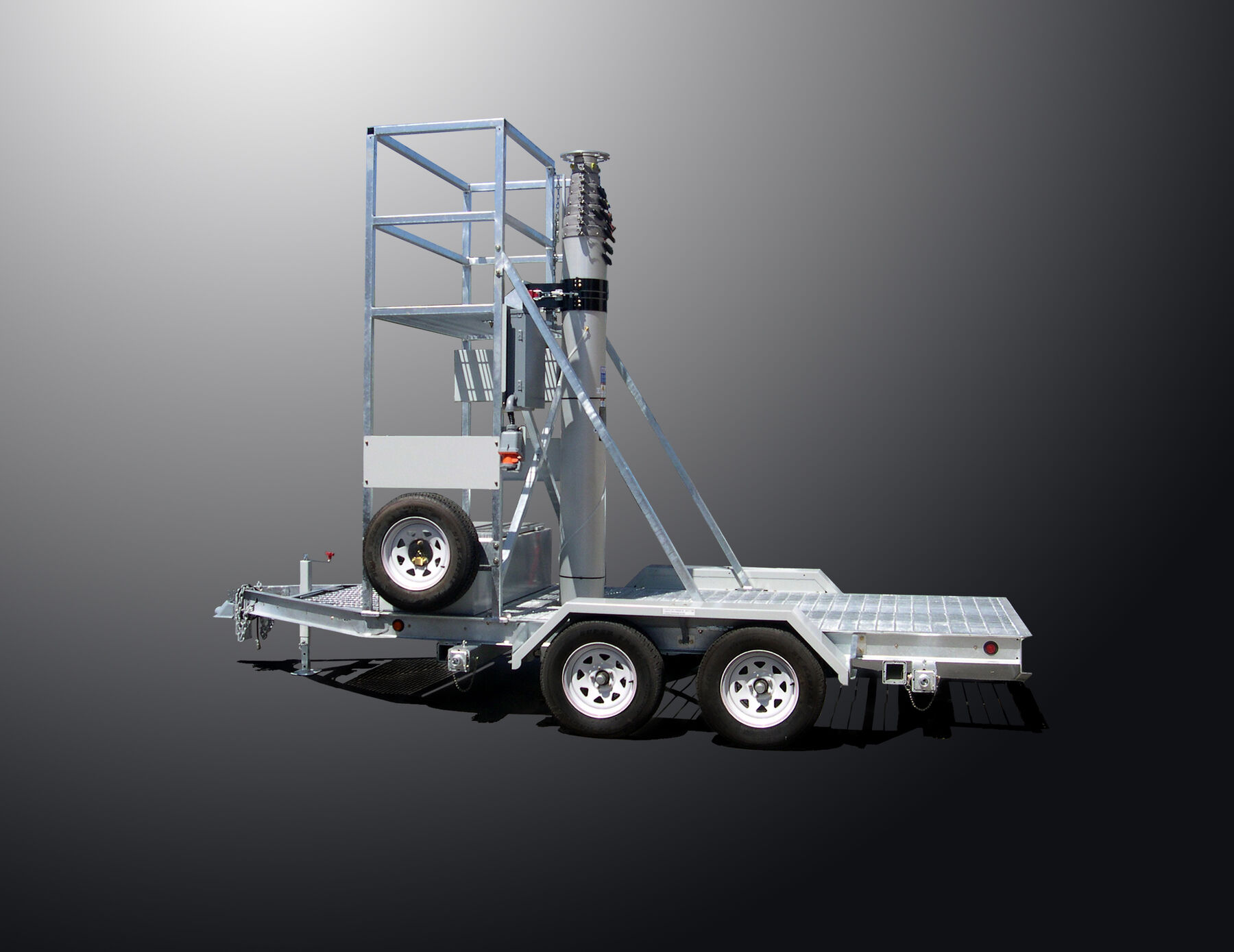

picture of a 13' Mini-COW Cell On Wheels

The 13’ Mini-COW - Cell On Wheels trailers are designed to provide an industry standard platform to accommodate customer equipment and/or equipment cabinets. Popular uses include small scale Tower on Wheels for water tower repaints, and special event coverage.

Below are just a few of the standard features of the 13' Mini-COW:

  • 13’ 8,000-lb. GVWR DOT Approved Trailer “Manufactured by Sun West Engineering, Inc.”
  • Fully Galvanized Steel Grated Decking to Easily Accommodate Mounting of All Equipment Requirements
  • (1) 60’ Super Heavy Duty Mast (530-lb. lift/load @ 60MPH 20 sq’ of sail area)
  • Crow’s Nest Mast Support and Working Platform per OSHA Standards
  • (4) Multi Position Outriggers with Jacks for Stabilization

For more information on our 13' Mini-COW, click "Learn More"...


Small Cell / Repeater COW

Picture of a small cell COW used for special events or on rooftops

Small Cell/Repeater Cow …This unit is perfect for fast set ups, and deployments that need to go through parking garages, and for those prime locations that need to fit in a mid-size parking spot (without guying). This unit’s custom compact design is for those large events that need just a little more capacity, and it’s the perfect size for disaster recovery and can be towed by ½ ton truck.

This COW is specially designed to have a maximum travel height of just 7 feet!  With this low travel height it can be pulled through nearly any parking garage and set up on the roof in just minutes.  Once on the roof, the rotating 25’ mast is easily spun into the vertical position and locked down for deployment.  The retractable trailer tongue is slid into its stowed position, and the unit only takes up one parking space.  Fire up the on-board 10kW generator with 45 gallon fuel tank and this COW can graze for nearly 2 full days!

For more information on our Small Cell / Repeater COW, click "Learn More"...


Standard 18', 20' & 22' COW

Picture of a 20' COW (Cell on Wheels)

These 18’, 20' & 22’ COW Cell On Wheels trailers are designed to provide an industry standard platform to accommodate customer equipment and/or equipment cabinets.

Below are just a few of the features of our Standard COW:

  • 18’-20’-22’ 16,000-lb. – 18,000 GVWR DOT Approved Trailer “Manufactured by Sun West Engineering, Inc.”
  • Fully Galvanized Steel Grated Decking to Easily Accommodate Mounting of All Equipment Requirements
  • (1) 60’ Super Heavy Duty Mast (530-lb. lift/load @ 60MPH 20 sq’ of sail area)
  • Crow’s Nest Mast Support and Working Platform per OSHA Standards

For more information about our 18', 20', or 22' COW, click "Learn More"...


Large 26' COW

picture of a Large COW (Cell On Wheels) with Generator

These 26’ COW Cell On Wheels trailers are the workhorse of the industry.  They are designed to provide an industry standard platform to accommodate customer equipment and/ or equipment cabinets.

Below are just a few of the features of our Standard 26’ COW:

  • 26’ 26,000-lb. GVWR DOT Approved Trailer “Manufactured by Sun West Engineering, Inc.”
  • Fully Galvanized Steel Grated Decking to Easily Accommodate Mounting of All Equipment Requirements
  • (1) 60’ Super Heavy Duty Mast (530-lb. lift/load @ 60MPH 20 sq’ of sail area)
  • Crow’s Nest Mast Support and Working Platform per OSHA Standards
  • (4) Multi Position Outriggers with Jacks for Stabilization

These COWS are configurable with many options to accommodate project requirements.  Please refer to the attached drawings and full specifications.  Consult our factory for special configuration options.

For more information on our 26' COW, click "Learn More"...


100' & 120' TOW

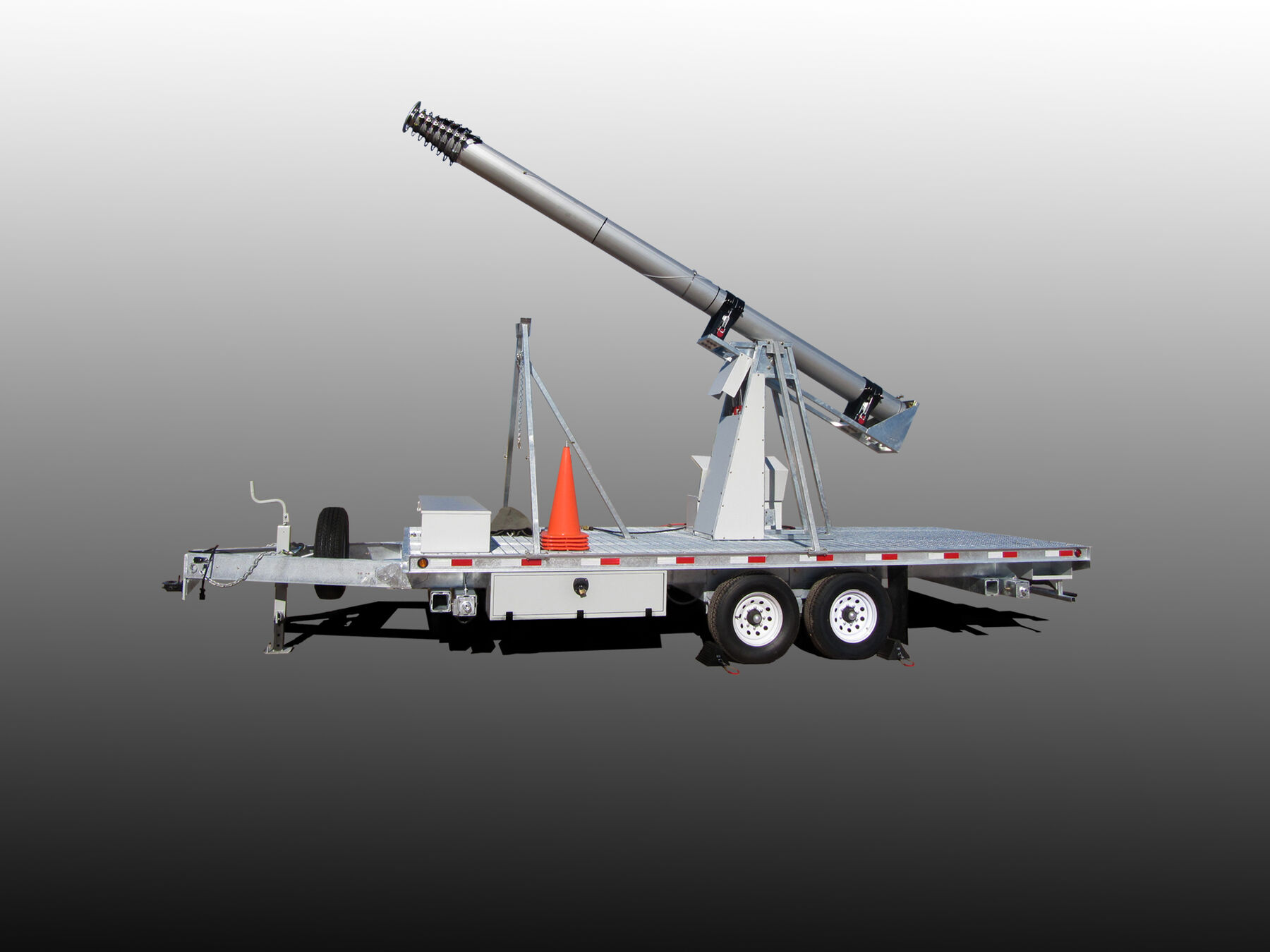

Picture of a 100' tilt over TOW (Tower On Wheels)

These 100’ & 120’ TOW Tower On Wheels trailers are designed to provide maximum deployable height with a mobile platform.  They are available with and without generators or equipment cabinets to accommodate customer needs.

Below are just a few of the features of our Standard Tilt-Over TOWS:

  • 18,000-lb. GVWR DOT Approved Trailer “Manufactured by Sun West Engineering, Inc.”
  • Fully Galvanized Steel Grated Decking to Easily Accommodate Mounting of All Equipment Requirements
  • (1) 100’ or 120’ Super Heavy Duty Locking Mast (530-lb. lift/load @ 60MPH 20 sq’ of sail area)
  • Tilt Over Frame with Mast Support
  • (4) Multi Position Outriggers with Jacks for Stabilization


For more information on our Tilt-Over TOWS, click "Learn More"...
