Wireside Telco Cabinets

These cabinets are an industry standard proven product supporting the communications industry. Please refer to the attached drawings and full specifications. Please consult factory for special configuration options.


SB Series

Our SB Series cabinets are UL® listed and quality constructed in compliance with NEMA 3R standards for outdoor use (National Electrical Manufacturers Association).  These rainproof TYPE-3R cabinets have a full 3/4” thick plywood backboard. There are no partitions or splice chambers in these cabinets.

Model No.                Sizes
                              W    H     D
SB-02402608        24 X 26 X 8
SB-02403608        24 X 36 X 8
SB-03003609        30 X 36 X 9
SB-030036012      30 X 36 X 12
SB-030036016      30 X 36 X 16
SB-03603608        36 X 36 X 8
SB-036036012      36 X 36 X 12
SB-036036016      36 X 36 X 16
SB-03604208        36 X 42 X 8
SB-04804808        48 X 48 X 8
SB-04804812        48 X 48 X 12
SB-04804816        48 X 48 X 16

For more information, click "Learn More"...

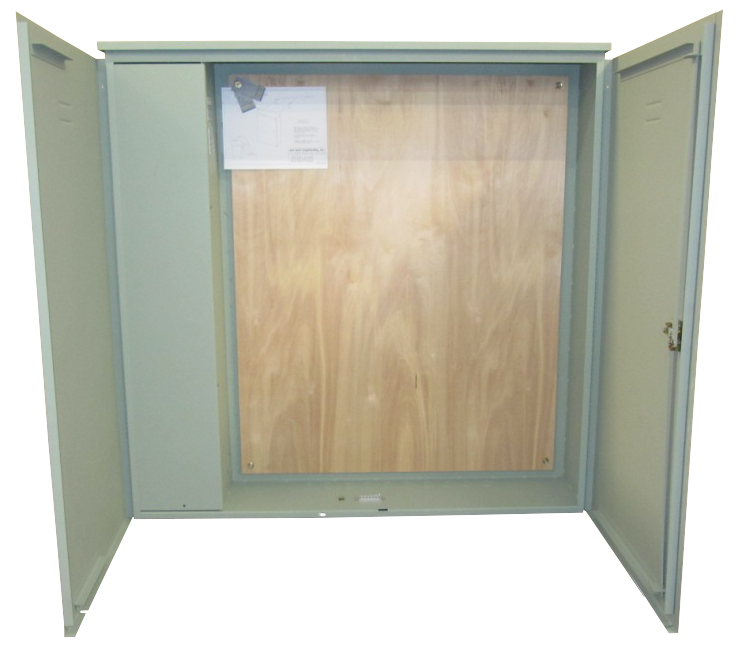

TC Series

Our TC Series cabinets are UL® listed and quality constructed in compliance with NEMA 3R standards for outdoor use (National Electrical Manufacturers Association).  These rainproof TYPE-3R cabinets have an internal splice chamber along the left wall. The remaining area has 3/4” plywood backboard.



Model No.                 Sizes
                              W    H    D
TC-02402608        24 X 26 X 8
TC-03003609        30 X 36 X 9
TC-03803609        38 X 36 X 9
TC-04804809        48 X 48 X 9

For more information, click "Learn More"...

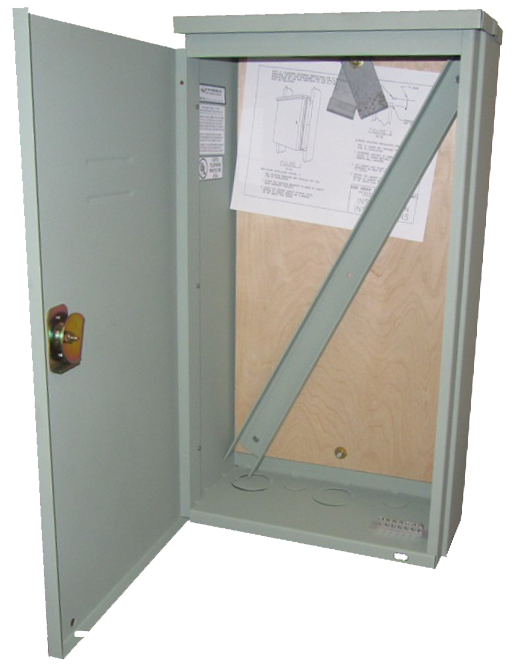

PB Series

Our PB Series cabinets are UL® listed and quality constructed in compliance with NEMA 3R standards for outdoor use (National Electrical Manufacturers Association). These rainproof TYPE-3R cabinets are made to fit between building studs on 16” centers and come with mounting rails which allow the user to semi-flush mount the cabinets 3.00” or 4.00” into a wall. These cabinets may also be surface mounted. They come with a 3/4” plywood backboard. Mounting rails included.

Model No.                 Sizes
                              W    H    D
PB-01401205       14 X 12 X 5.25
PB-01401505       14 X 15 X 5.25
PB-01402607       14 X 26 X 6.75



For more information, click "Learn More"...

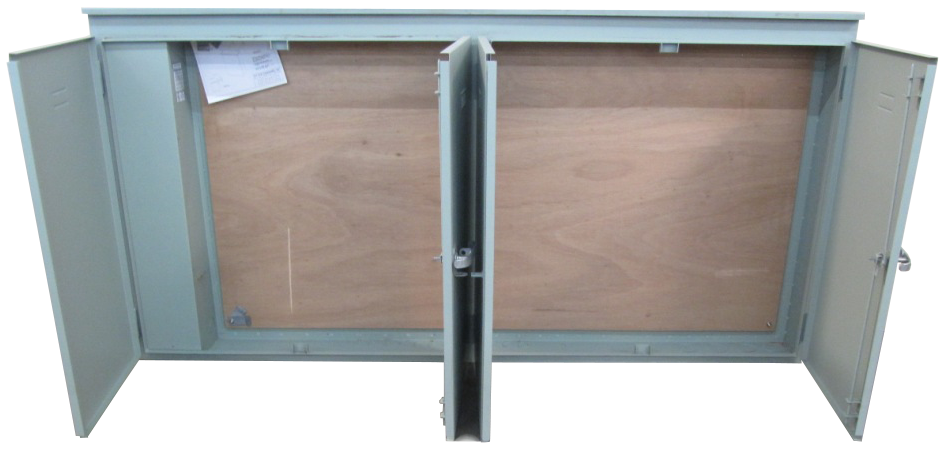

MPOP Series

Our MPOP (Minimum Point of Presence) Series cabinets are UL® listed and quality constructed in compliance with NEMA 3R standards for outdoor use (National Electrical Manufacturers Association).  These rainproof TYPE-3R cabinets are built to house protectors and network interface devices for the phone company's “Minimum Point of Presence.” These cabinets are setup to have the protectors behind the left set of doors and the “NI” devices behind the right doors. All MPOP cabinets have 3/4” plywood backboards and splice chambers along the left wall.

Model No.                           Sizes
                                        W    H    D
*MPOP-09604808          96 X 48 X 8

*DISCONTINUED - Contact Us for Further Details



For more information, click "Learn More"...

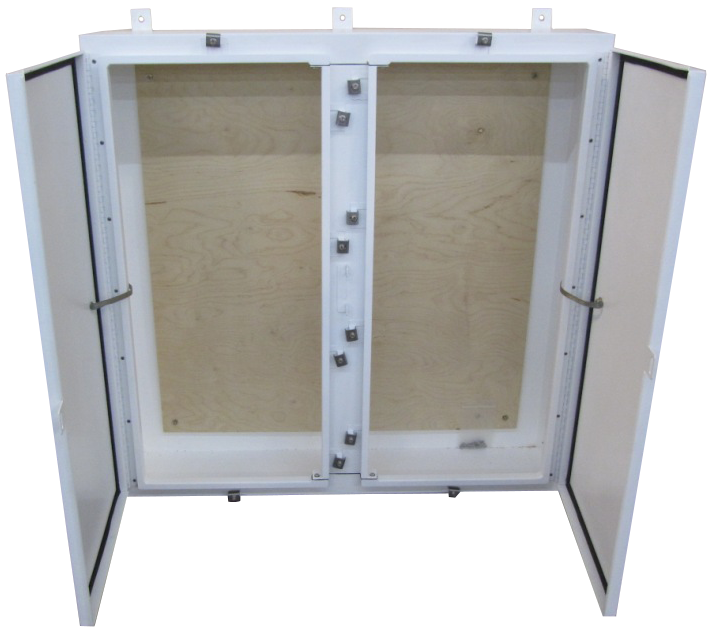

CB Series

Our CB Series cabinets are custom built.  These custom cabinets may be TYPE-1 or TYPE-3R and conform to the “enclosure” sections of UL-497 and UL-1863, but do not fit any other “series” as described above.

Model No.                        Sizes

Custom Built to Customer Specifications

For more information, click "Learn More"...
